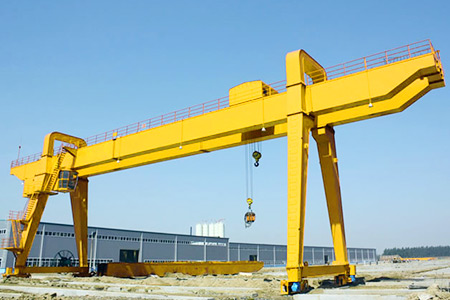

A type double girder gantry crane with hook is suitable for open storage, along railway operations for general handling and lifting work. A type door frame structure, on the top of it there is a saddle structure , reasonable force, and it is the most widely used double girder gantry crane. According to their structure, can be divided into boxes-MG, rated lifting weight is 5~320t and reduced wind resistance design of truss structure of MGH, rated capacity is 5~50T.
|
Capacity (ton) |
5 |
10 |
16/3.2 |
20/5 |
32/5 |
50/10 |
||
|
Span (m) |
18, 22, 24, 26, 30, 35 |
|||||||
|
Lifting height (m) |
10, 11, 12 |
|||||||
|
Working class |
A5 |
|||||||
|
Control way |
Cabin control |
|||||||
|
Power source |
380V 50HZ 3phase (Could supply it as yours) |
|||||||
|
Trolley lifting mechanism |
||||||||
|
Lifting speed (m/min) |
Main hook |
11.3 |
8.5 |
7.9 |
7.2 |
7.5 |
5.9 |
|
|
Auxiliary hook |
- |
- |
14.6 |
15.4 |
15.4 |
10.4 |
||
|
Trolley traveling mechanism |
||||||||
|
Traveling speed (m/min) |
37.3 |
35.6 |
36.6 |
36.6 |
37 |
36 |
||
|
Crane traveling mechanism |
||||||||
|
Traveling speed (m/min) |
37.3 |
39.7 |
37.3 |
39.7 |
39.4 |
38.5 |
||
|
Motor power(KW) |
40.8-51.8 |
41.5-52.8 |
80-77 |
84-81 |
99.3-117.3 |
126.5 |
||
|
Steel track recommended |
43kg/m |
43kg/m or QU70 |
||||||
High working duty
Widely usage
High quality
Easy use
Easy maintenance
Long life time
