Double cantilever MH Truss-type Single girder gantry crane

  • Double cantilever MH Truss-type Single girder gantry crane
Main Parameter
  • Type:MH
  • Lifting Capacity:1~20t
  • Lifting Height:Customizable
  • Span:8~30m
  • Working Duty:A3,A4
  • Ambient Temperature:-20~40℃
Cranes provide customized services
WhatsApp:+86-13303801967
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

Production Details

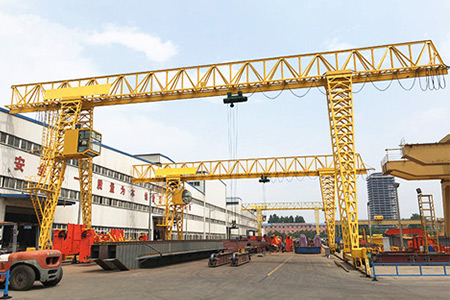

Double cantilever MH Truss-type Single girder gantry crane

Double cantilever MH Truss-type Single girder gantry crane is a type of light small gantry crane with a single girder and rail travelling. The Double cantilever MH Truss-type Single girder gantry crane is designed for generally material handling, with the lifting capacity around 1 to 20 tons, and working class A3, or A4. The specification of the Double cantilever MH Truss-type Single girder gantry crane is as follow:



Components of Double cantilever MH Truss-type Single girder gantry crane

Double cantilever MH Truss-type Single girder gantry crane is mainly consisted of gantry frame, i.e. main single girder, legs, bottom end beams, lifting mechanism, travelling mechanism, and electrical control. It can be designed with two hanging arms, one hanging arm or no-hanging arm according to client's lifting requirements and application environment.

Classification of Double cantilever MH Truss-type Single girder gantry crane

Double cantilever MH Truss-type Single girder gantry crane can be divided into box type and truss type.



Box type

The box type Double cantilever MH Truss-type Single girder gantry crane is a medium sized crane, travelling in track , usually equipped with standard CD MD electric hoist as the lifting mechanism, and the electric hoist traversing along the lower flange of the I- steel of the main girder, which is made of high quality steel plates, such as, C-steel and I-steel.



Truss type

The truss Double cantilever MH Truss-type Single girder gantry crane differentiates itself with the box type crane in terms of structure construction. The former is made of steel bars and the latter is made of steel plates. The truss gantry crane is much lighter than that of the box type gantry crane and it has high wind resistance.



Application of Double cantilever MH Truss-type Single girder gantry crane

Double cantilever MH Truss-type Single girder gantry crane is regular crane, designed for general material handling , which is frequently used at open ground, warehouse, ports, granite industry, cement pipe industry, open yard, container depots and shipyards, etc. However, it is forbidden to handle melt metal, inflammable. Or explosive objects.















Lift capacity (t)

3

5

10

16

20

Span (m)

         12~30m

Lift height (m)

         6  9

Traveling

 part

Traveling

Speed

(m/min)

Ground

20

20

20

20

20

Control room

20/30/45

20/30

20/30

20/30

20/30

Motor



Ground

YSE802-4/

0.8x2

YSE802-4/

0.8x2

YSE90L-4/1.5x2

YZRM1-6/4x2

YZR160M1-6/6.3x2

Control room

ZDR100-4/

1.5x2

ZDR100-4/

1.5x2

ZDR112L1-4/2.1x2

Reducer

LD drive

LD drive

LD drive

ZSC600

ZSC600

Wheel diameter

φ270

φ300

φ400

φ600

φ600

Electric

hoist

Model

CD1

CD1

CD1

CD1

HC

Lifting speed (m/min)

8

8

7

3.5

3.5

Traveling speed (m/min)

20

20

20

20

20

Motor

Lifting

ZD41-4/4.5

ZD41-4/4.5







Traveling

ZDY 12-4/0.4

ZDY1 21-4/0.8

ZDY 21-4/0.8x2

ZDY1 21-4/0.8x2

ZDY1 21-4/0.8x4

Working duty

A3

Power supply

380v~460v AC, 50hz~60hz ,3-phase

Advantages of Double cantilever MH Truss-type Single girder gantry crane

Simple structure, Easy installation
Good usability and high performance efficiently
Low and easy maintenance
Standardized, generalized and serialized parts.


Safety Feature

Overload protection devices is equipped which will give a sharp alarm warning when overloads happen.
Limit switches is used to prevent over lifting or lowering of the crane hook.
High quality polyurethane buffer is used to ensure a long time working life.
Room control and remote control are available for the sake of your operator’s safety.
Low voltage protection is used in case of the unstable voltage supply.
Emergency stop button is installed to brake the equipment when emergency happens.
Current overload protection system and others, etc.
